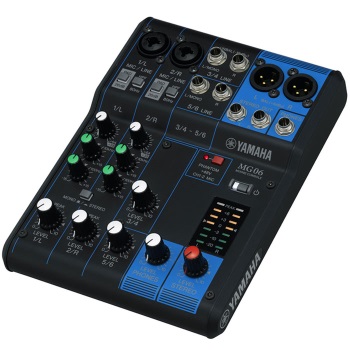

Yamaha MG06 6-Channel Mixing Console

$10 Yamaha Rebate Available through March 31, 2018

6-Channel Mixing Console: 2 mic/6 line inputs (2 mono + 2 stereo)

Yamaha's MG series mixers have been the cornerstone of many musicians live sound tool box. The latest version of these mixers builds on the success of previous MG models while retaining the user-friendly interface the lineup has been known for.
The MG06 is a small, compact mixer with 2 mic or line inputs with global switchable phantom power. Each microphone channel features a 26 dB PAD switch for loud inputs, a 80 Hz, 12 dB/octave high-pass filter switch, an adjustable gain knob, and a easy to use high and low EQ shelving controls. Two 1/4" stereo channels feature simple operation with single volume knob controls. An adjustable headphone output and a main output featuring both 1/4" balanced and XLR outputs.
Needing effects? Check out the XU version of the MG mixers!

Yamaha MG06 6-Channel Mixing Console specifications:

• 6-channel mixing console: 2 mic / 6 line inputs (2 mono + 2 stereo)
• +48 V phantom power
• 2 mic/line inputs
• 2 stereo line inputs
• 2 balanced stereo outputs (XLR and 1/4" TRS)
• 1 headphone output
• 26 dB switchable pad on mono channels
• 80 Hz, 12 dB/octave high pass filter switch on mono channels
• EQ high/low shelve tone controls on mono channels
• Signal peak LED on mono channels
• 2 x 7-segment LED meter
• Total harmonic distortion: 0.01% @ +8dBu (20 Hz to 20 kHz, GAIN knob: min - 0.003% @ +18dBu (1kHz), GAIN knob: min
• Only 2 lbs!
• Power requirements: PA-130 (DC12V/1.0 Amps)




Model:	MG06
Manufacturer:	Yamaha
